BMW M2 Build - Data Logging Setup

Not only do I love to modify a car simply to modify a car, but I love it when those mods actually make you go faster and become a better driver. Getting good (and easy) data logging in a track/race car is critical. There are many different options to choose from ranging from smartphone setups, to advanced amateur setups, all the way to pro level setups. To read about what data system I put into the SVMC M2 check out this blog posting.

But what I found out once I began using that setup was that I was getting some confusing data readouts. Getting bad data is worse than getting no data. So I once again reached out to my friends at Edge in Fremont and they hooked me up with their data guru Jeremiah Wennermark from Man & Machine Consulting. Very quickly Jeremiah found out that my config files for my AIM Solo 2 DL and Smartycam were not setup quite right. He was able to provide me new config files remotely and I was able to simply load them up.

Jeremiah and I also talked about how to get better data from the SVMC M2 which either means upgrading the AIM system or moving over to a Motec system. Both of those options will require a good amount of coin so for now I will use my AIM Solo 2 DL but I do agree a more flexible and powerful system is preferred. Jeremiah also offers track side analysis, remote analysis, and complete data logging car setups. If you are in the need to work with someone on getting the best data logging you can, or you simply want someone to help you understand what all those squiggly lines mean after your race…..reach out to Jeremiah at Man & Machine Consulting.

A bit more about Man & Machine Consulting:

We are proud to focus on the analysis and development of drivers, vehicles, processes, and teams across the motorsports spectrum. Our passion revolves around efficiently getting drivers and vehicles up to speed. We can support teams' with the most basic data acquisition and excel with professional motorsports' grade instrumentation and controls.

Our passion lies in objectivity, engineering, growth, and sharing all of the above with teams. We strive to elevate our clients' standards by sharing our passion and processes. Doing so allows them to continue to grow long after our contracts are complete. Many consultants hold their processes and information close to their chest thus hindering clients' long-term development. We take pride in supporting our clients, their vehicles, and their sponsoring partners. VISIT US

BMW M2 Build - Data and Video System

All respectable track cars need a data and video system of some kind to see where you can improve. In my case I need all the coaching I can get. There are plenty of systems out there to choose from. You have the inexpensive iPhone + app setup. The slightly more expensive iPhone + app + GoPro system. The expensive dedicated data and video system that tap into the ECU and receive a multitude of data channels and then overlays that data onto track video. And finally, the pro custom systems that monitor every aspect of the car and streams that data back to the pit crew for real time analysis.

On any given track day the dominant system (by far) is the iPhone + app + GoPro. I started with this system years ago and it is great for the price. You have apps like Harry’s Lap Timer that do a terrific job at capturing some data channels and video and putting it all together for engaging video footage. The only issue is that you can’t do deep analysis on the data or easily compare the data from a reference lap to the rest of your laps. Also you end up with gear all over the windshield (iPhone + GoPro + cables). There is a practical problem with all that gear stuck to your windshield or dash besides visibility……and that is “when” it falls off it may fall into the driver’s footwell and obstruct the pedals. Having something fall by your feet as you are dive bombing into a turn is not a great feeling. The other thing that bothered me with the iPhone setups was the constant management I had to do with the gear. Turn this on, check that, recharge this. All of that time and attention took away from enjoying the day and focusing on driving.

So years ago I switched to an AIM system. My original system was a Solo DL + Smartycam. A system like this is more streamlined, is automated (turns on and records and shuts off all based on you starting and finishing a session), and since it is a dedicated system it is more feature rich. The downside….price. These systems can add up quickly but if you are on the track enough they are worth it. About 1-2 years ago AIM updated their lineup and came out with the Solo 2 DL and Smartycam GP HD 2 which is the system I picked for the SVMC M2. It taps into the ECU, has GPS, draws power from the car, overlays the data onto the video in real time, and has a powerful (albeit cumbersome) computer application to store and analyze all your data. The Solo 2 DL even has wifi connectivity to pass all the data (not video) to your track side laptop.

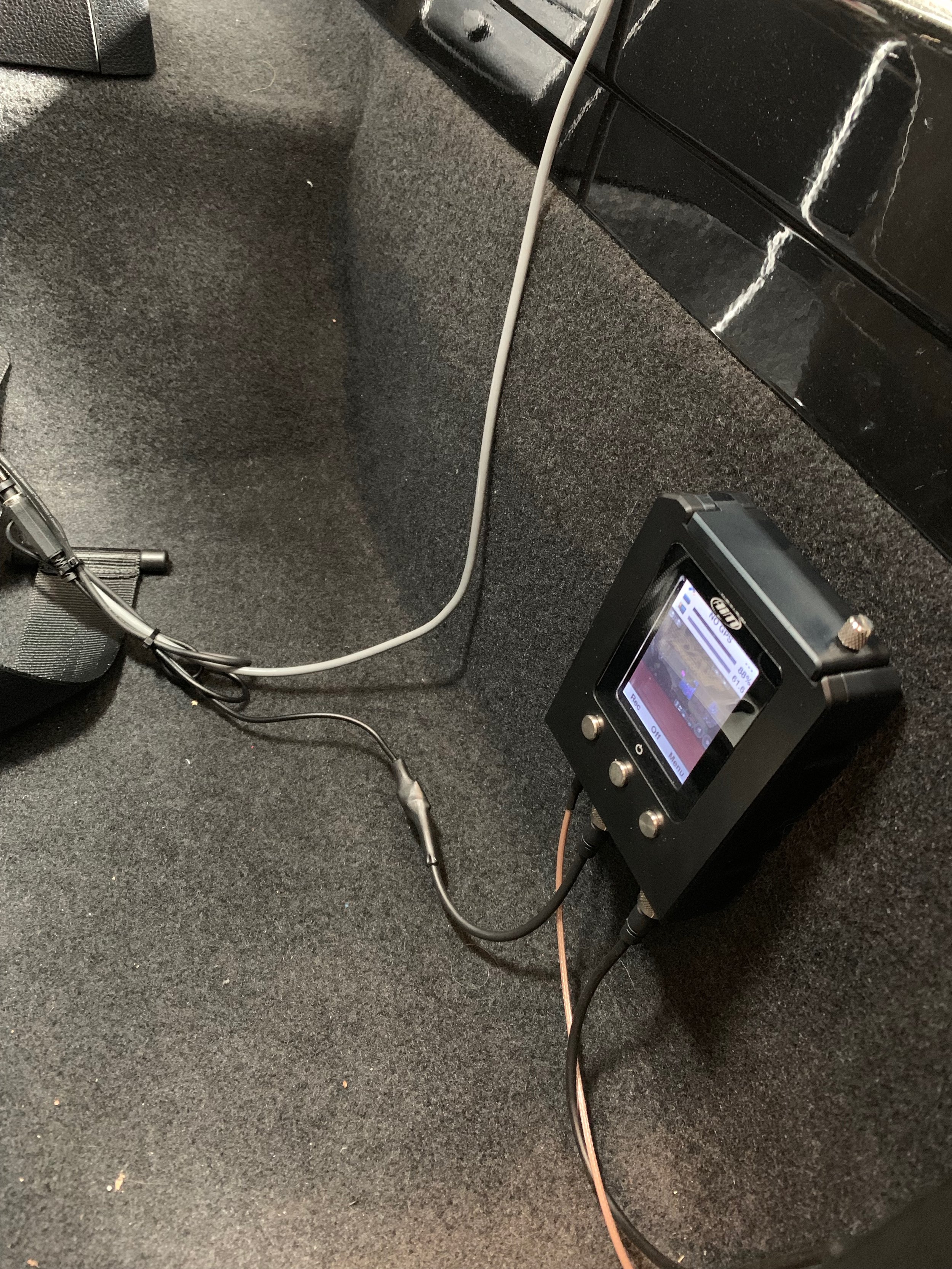

Keeping with the GTS theme for the M2 I decided to do a custom installation for the AIM system to hide all the wires and make it look like a factory option. So I had a fabricator (TC Design) build a metal housing over the cup holder area of the M2 in the center console and powder coat that glass black so I could mount the Solo 2 DL in a central place that is out of the way but easy to read. It also allowed me to tuck all the wires behind the dash. The enclosure also gives me a place to mount switches in the future. I then mounted the Smartycam GP HD 2 behind the driver in the backseat footwell so I could easily access it but keep it out of the way. I am left with a system that is fully contained, fully automated, pulls data from the car, and makes analysis quick and easy. In short it is fool proof and works every time without having to do anything. The only issue I have with the Solo 2 DL is that the level of ECU support for the F87 chassis is light. BMW is rather strict on what channels they allow to flow through to systems like AIM. This is more of an issue for BMWs as other cars like Porsches are much more open. But the data channels you do get are rather good (some temps, RPM, wheel speed, calculated gear, etc.). A slightly more advanced option would be to run independent sensors and use an AIM system like the MXm. In hindsight I wish I had gone this route.

Now let’s talk about predictive grip data. One thing that most data systems lack is true predictive grip data which is the level of potential grip your car has at any given moment. The only system I know of that has this capability is APEX. This little device has a series of lights that show you the potential grip at that moment compared to the amount of grip you are using. The APEX device wirelessly connects to your iPhone and does have other data recording capabilities, but for my purposes I only really use the APEX system to record potential grip compared to actual grip. It is a great way to see how effective you are using the grip….AKA how hard and smooth are you driving. If you are not interested in buying an AIM system you can use APEX for an end to end system that is better than most iPhone + app setups.

Once you have all the data and video information handy then you need to know how to read the data. For that get a book or take a class or watch training videos to make sense of all those squiggly lines. Good luck with that.
